Specifications

PRICING

Price	Standard
Price - Warranty (Months)	24
Price - Warranty (Condition)	Limited

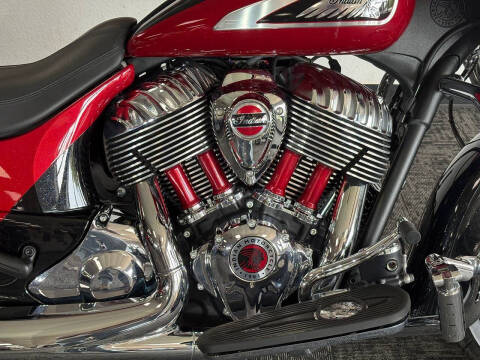

ENGINE

Engine	Standard

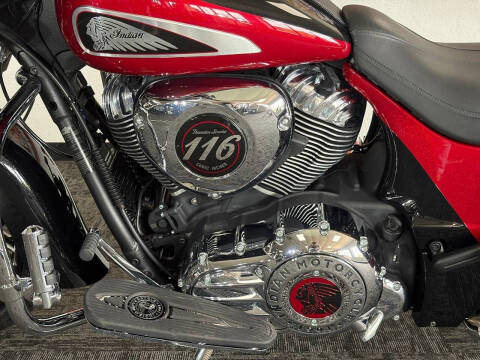

Engine - Engine Brand Name	Thunder Stroke 116
Engine - Engine Type	V Twin
Engine - Cylinders	2
Engine - Engine Stroke	4-Stroke
Engine - Torque (Ft Lbs)	126
Engine - Torque (Nm)	168
Engine - Torque RPM	2900
Engine - Cooling	Air
Engine - Valves	4
Engine - Valves Per Cylinder	2
Engine - Valve Configuration	OHV - Pushrod
Engine - Bore (mm)	103.2
Engine - Bore (in)	4.06
Engine - Stroke (mm)	113
Engine - Stroke (in)	4.45
Engine - Displacement (cc)	1901
Engine - Displacement (ci)	116
Engine - Compression Ratio	11:1
Engine - Starter	Electric
Engine - Fuel Type	Gas
Engine - Turbocharged	No
Engine - Supercharged	No
Carburetion	Standard
Carburetion - Fuel Injector	Yes
Carburetion - Fuel Injector Size (mm)	54
Carburetion - Carburetor	No
Carburetion - Number Of Carburetors	0
Carburetion - Carburetion Type	Fuel Injected
Parental Controls - Speed Governor	No

TRANSMISSION

Transmission	Standard
Transmission - Transmission Type	Manual
Transmission - Number Of Speeds	6
Transmission - Overdrive	No
Transmission - Primary Drive (Rear Wheel)	Belt
Transmission - Primary Drive (Engine / Transmission)	Gear
Transmission - Gear Ratio (1)	9.4
Transmission - Gear Ratio (2)	6.41
Transmission - Gear Ratio (3)	4.76
Transmission - Gear Ratio (4)	3.8
Transmission - Gear Ratio (5)	3.24
Transmission - Gear Ratio (6)	2.79
Transmission - Reverse	No
Transmission - Final Drive Ratio	2.2
Heel Toe Shifter	Standard

TECHNICAL SPECIFICATIONS

Dimensions	Standard
Dimensions - Length (in)	98.7
Dimensions - Length (mm)	2506
Dimensions - Width (in)	39.4
Dimensions - Width (mm)	1000
Dimensions - Height (in)	56.7
Dimensions - Height (mm)	1440
Dimensions - Wheelbase (in)	65.7
Dimensions - Wheelbase (mm)	1668
Dimensions - Ground Clearance (in)	5.1
Dimensions - Ground Clearance (mm)	130
Dimensions - Length (ft)	8.22
Dimensions - Length (ft/ft)	8
Dimensions - Length (ft/in)	2.7
Weight	Standard
Weight - Dry Weight (lbs)	804
Weight - Dry Weight (kg)	365
Weight - Wet Weight (lbs)	836
Weight - Wet Weight (kg)	379
Capacities	Standard
Capacities - Fuel Capacity (gal)	5.5
Capacities - Fuel Capacity (l)	20.8
Performance	Standard
Performance - Engine Displacement to Weight (cc)	2.36

EXTERIOR

Construction	Standard
Construction - Frame	Aluminum
Construction - Body Material	Plastic
Floor Boards	Standard
Floor Boards - Floor Board Location	Driver
Hand Grips	Standard
Foot Pegs	Standard
Foot Pegs - Foot Peg Location	Passenger
Foot Pegs - Adjustable	No
Exterior Guards	Standard
Exterior Guards - Chain Guard	No
Exterior Guards - Chassis Protectors	No
Exterior Guards - Drive Shaft Guard	No
Exterior Guards - Engine Case Guard	Yes
Exterior Guards - Fork Guards	Yes
Exterior Guards - Saddle Bag Guard	No
Exterior Guards - Tank Guard	No
Exterior Guards - Belt Guard	Yes
Exterior Guards - Hand Guards	No
Exterior Guards - Brush Guard	No
Exterior Guards - Heel Guards	No
Exterior Guards - Exhaust Guard	Yes
Exterior Guards - Light Guard	No
Exterior Covers	Standard
Exterior Covers - Radiator Cover	No
Exterior Covers - Fuel Tank Cover	No

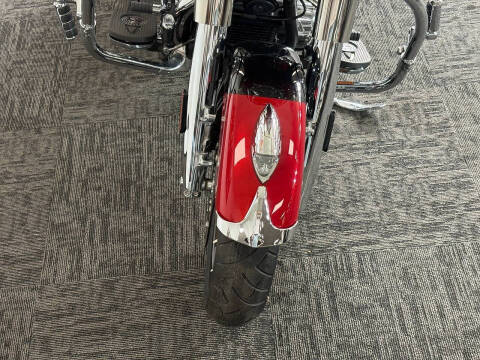

Front Fender	Standard
Front Fender Trim	Standard
Rear Fender	Standard
Rear Fender Trim	Standard
Tank Divider	Standard
Tank Divider - Tank Divider Material	Leather
Tank Divider - Pocket	No
Stand	Standard
Stand - Stand Type	Kick
Handlebars	Standard
Upper Fairing	Standard

SUSPENSION

Front Suspension	Standard
Front Suspension - Front Suspension Type	Telescopic Fork
Front Suspension - Front Suspension Size (in)	1.8
Front Suspension - Front Suspension Size (mm)	46
Front Suspension - Front Travel (in)	4.7
Front Suspension - Front Travel (mm)	119
Front Suspension - Front Central Suspension Strut	No
Front Suspension - Steering Damper	No
Rear Suspension	Standard
Rear Suspension - Rear Suspension Type	Twin Sided Swing Arm
Rear Suspension - Rear Travel (in)	4.5
Rear Suspension - Rear Travel (mm)	114
Rear Suspension - Rear Adjustable Shock / Spring Pre-Load	Yes
Rear Suspension - Number Rear Shock Absorbers	1
Rear Suspension - Rear Suspension Material	Steel
Rear Suspension - Air Adjustable	Yes

WHEELS & TIRES

Wheels	Standard
Wheels - Wheels Composition	Aluminum
Wheels - Tube / Tubeless	Tubed
Wheels - Front Wheel Width (in)	3.5
Wheels - Rear Wheel Width (in)	5
Wheels - Chromed	Yes
Tires	Standard
Tires - Tire Brand	Dunlop®
Tires - Front Tire Width	130
Tires - Front Tire Aspect Ratio	60
Tires - Front Tire Speed Rating	H
Tires - Front Wheel Diameter	19
Tires - Rear Tire Width	180
Tires - Rear Tire Aspect Ratio	60
Tires - Rear Tire Speed Rating	H
Tires - Rear Wheel Diameter	16
Tires - Front Tire (Full Spec)	Dunlop® American Elite: 130/60B - 19 61H
Tires - Rear Tire (Full Spec)	Dunlop® Elite 3 Multi-Compound: 180/60R - 16 80H

BRAKES

Brakes	Standard

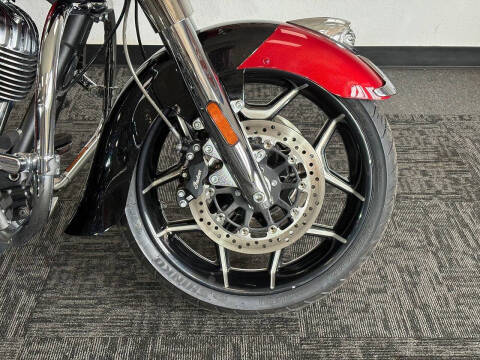

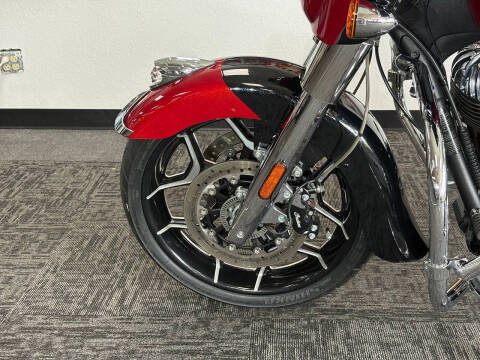

Brakes - Front Brake Type	Dual Hydraulic Disc
Brakes - Front Brake Diameter (in)	11.8
Brakes - Front Brake Diameter (mm)	300
Brakes - Rear Brake Type	Hydraulic Disc
Brakes - Rear Brake Diameter (in)	11.8
Brakes - Rear Brake Diameter (mm)	300
Anti-Lock Brakes	Standard
Linked Brake System Front to Rear	Standard

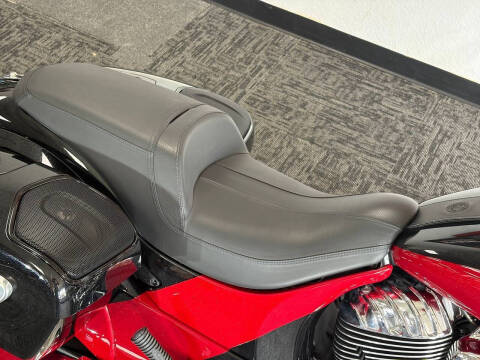

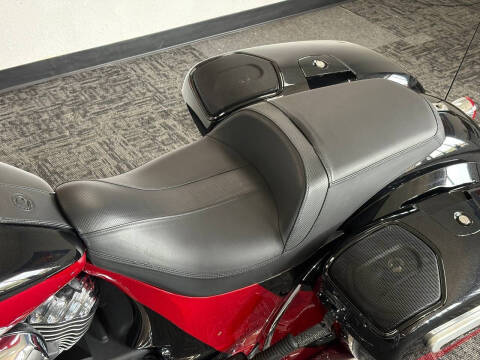

SEATS

Seat	Standard
Seat - Seat Type	One-Piece
Seat - Adjustable	No
Seat - Seat Material	Leather
Seat - Seat Location	Driver and Passenger
Seat - Folding	No
Seat Specifications	Standard
Seat Specifications - Seat Height (in)	25.6
Seat Specifications - Seat Height (mm)	650
Seat Specifications - Number Of Seats	2
Grab Rail or Strap	Standard
Sidecar - Detachable	No

INSTRUMENTATION

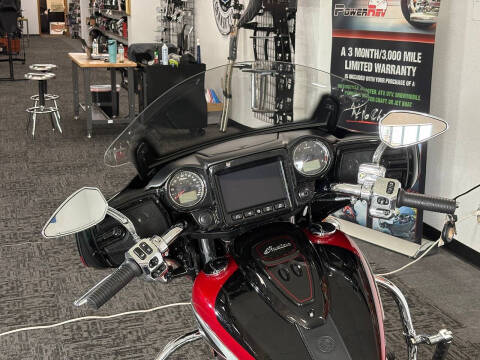

Digital Instrumentation	Standard
Clock	Standard
Tachometer	Standard
Trip Odometer	Standard
Trip Computer	Standard
Navigation System	Standard
Speedometer	Standard
GPS	Standard
GPS - GPS Brand	RIDE COMMAND™
Temperature Warning	Standard
Temperature Warning - Temperature Warning Type	Light
Fuel Level Warning	Standard
Fuel Level Warning - Fuel Level Warning Type	Gauge
Service Reminder	Standard

STORAGE

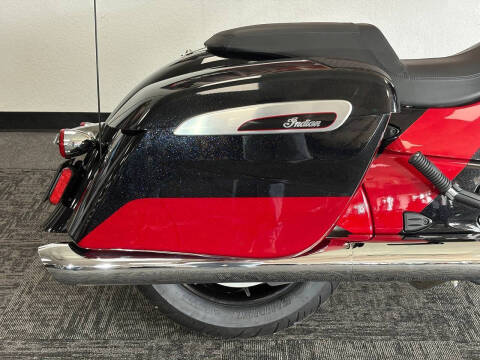

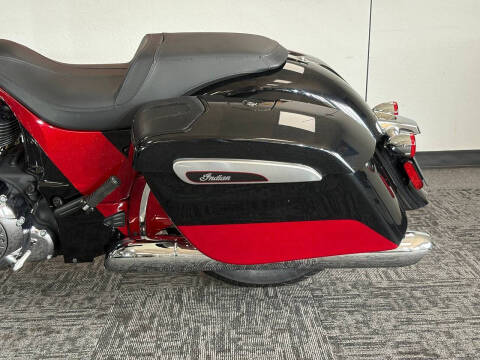

Hard Side Cases	Standard
Hard Side Cases - Side Case Material	Vinyl
Hard Side Cases - Number Of Side Cases	2
Hard Side Cases - Location	Left and Right Side
Saddle Bag(s) - Number Of Saddle Bags	0
Side Storage Mount	Standard
Lockable Storage	Standard
Cupholder - Number Of Cupholders	0
Sidecar Storage Cover - Camouflage Trim	No

LIGHTS

Headlight Mounting Bar	Standard
Passing Lamps	Standard
Headlight(s)	Standard

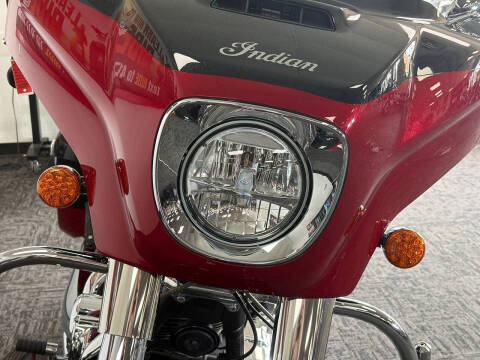

Headlight(s) - Type	LED

GLASS

Rearview Mirrors	Standard

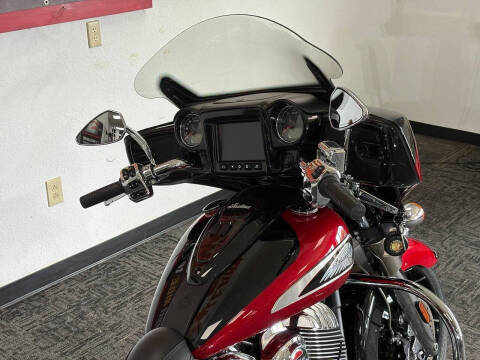

Windshield	Standard
Windshield - Windshield Lowers	No
Windshield - Height Adjustable	Yes
Windshield - Tinted	No
Windshield - Height	Mid

CONVENIENCE

Keyless Ignition	Standard
Power Outlet	Standard
Cruise Control	Standard

PAINT & FINISH

Paint	Standard
Paint - Metallic	No
Decal Kit	Standard

AUDIO & COMMUNICATION

Radio	Standard
Radio - Satellite	No
Speakers	Standard
Speakers - Number Of Speakers	4
CD Player - Number Of Discs	0

STEERING

Steering	Standard
Steering - Steering Control	Handlebar

MOUNTS

Side Case Mount	Standard
Windshield Mounts	Standard

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
